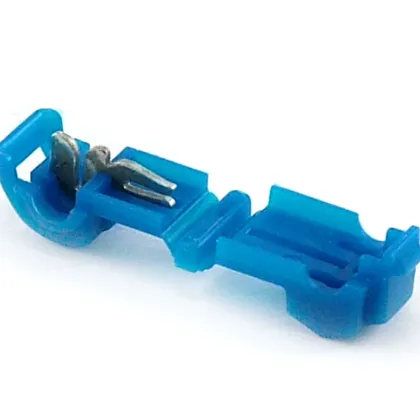

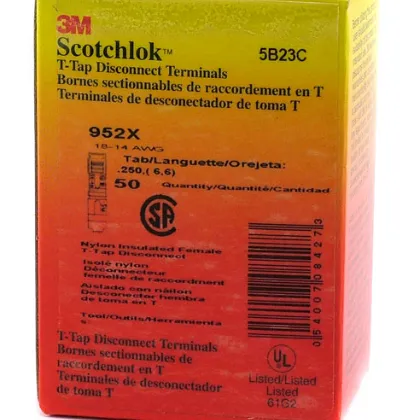

This is a box of 50 3M 18-14 AWG blue Nylon Insulated female T-Tap Disconnect Terminals. The part number is 3M 952X. These are used to electricly tap into a wire in mid-span without cutting or stripping the wire. Then the Connector mates with a .250 inch (6.35mm) male tab, making a reusable quick-connect wiring termination. T-tap disconnect.
Specifications:
- Manufacturer: 3M
- Part Number: 3M 952X
- Quantity: 50
- Color: Blue
- Agency Approvals: UL and CSA
- Barrel Style: Insulated Self-Stripping
- China RoHS - Below MCV: Yes
- Conductor Sizes: 18 - 14 AWG
- Connection Type: T-Tap
- Connector Style: Insulation Displacement
- CSA File Number: LR32411
- EU RoHS Compliant: Yes
- Fastener Orientation: Female
- Flame Retardant: Yes
- Insulation Material: Nylon
- Maximum Wire Gauge: 14 AWG
- Minimum Wire Gauge: 18 AWG
- Pad Width: 0.250 Inch
- Terminal Type: Disconnect
- UL File Number: E70512
- Maximum Insulation O.D. Diameter: 0.150 inches (3.81 mm)
- Operating Temperature: 221F (105C).
